A Structurally Superior Dump Truck Bed
Our light-duty dump truck bodies aren’t built “light duty” at all. Knapheide Fixed Side Dump Bodies feature double panel, high-strength steel construction on the sides and tailgate, in addition to a seven-gauge HRCQ steel floor. Utilize the double-acting sub frame hoist for effortless dumping and bulk material spreading applications. Numerous options including underbody toolboxes and packs for secure storage, quarter or full cab shields for protection, manual or electric tarps for retaining material and many others are available to increase the functionality and productivity of your next dump body.
- 3 Year Limited Warranty guaranteeing no body rust-through and defect-free material and workmanship when used as directed.
- Floor is constructed from 7-gauge high tensile steel for unmatched strength and durability.
- Crossmemberless understructure reduces weight for higher payloads and better fuel efficiency.
- Models available in nominal 9 to 12-foot lengths and 12 and 16-inch side heights to accommodate 2.5 to 4 cubic yards of material.
- Designed for Class 3 through 5 cab chassis.
Interested?
Fixed Side Dump Body
Features

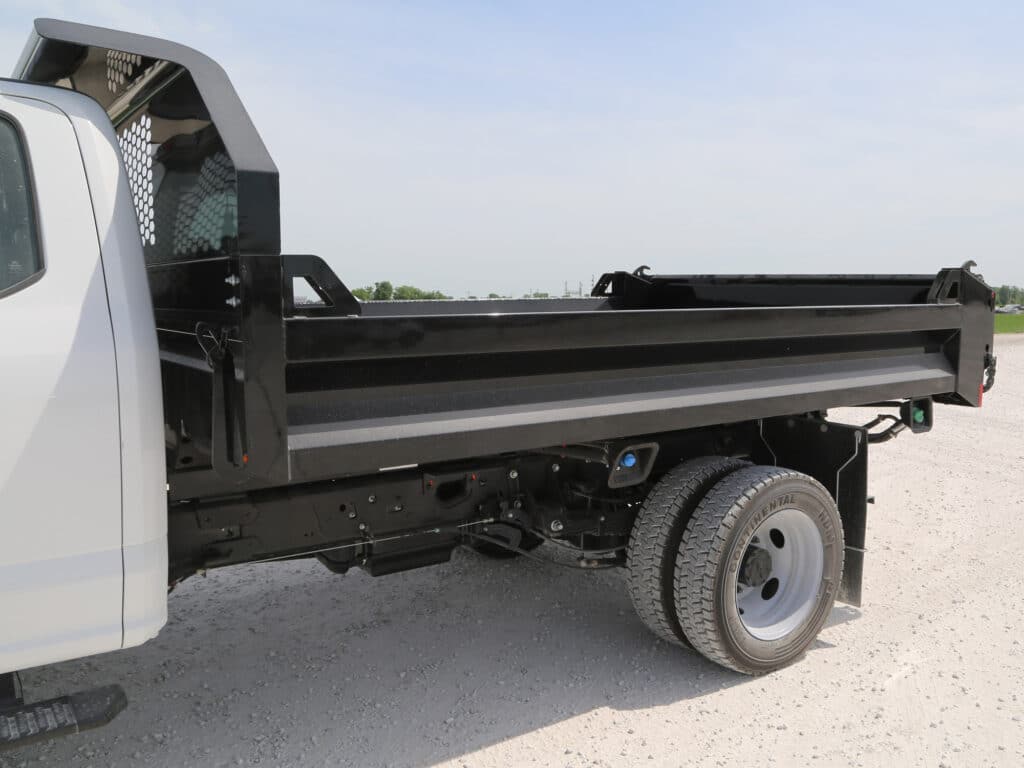

Cab Protector
Quarter cab protector constructed of 10 gauge high tensile steel with a punched window for improved operator visibility. Quarter cab protector in straight or tapered style, full cab protector available for full cab protection.
E-Coat Immersion
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Floor
Floor is constructed of two-piece, 7 gauge HRCQ steel with a full seam weld down the center.

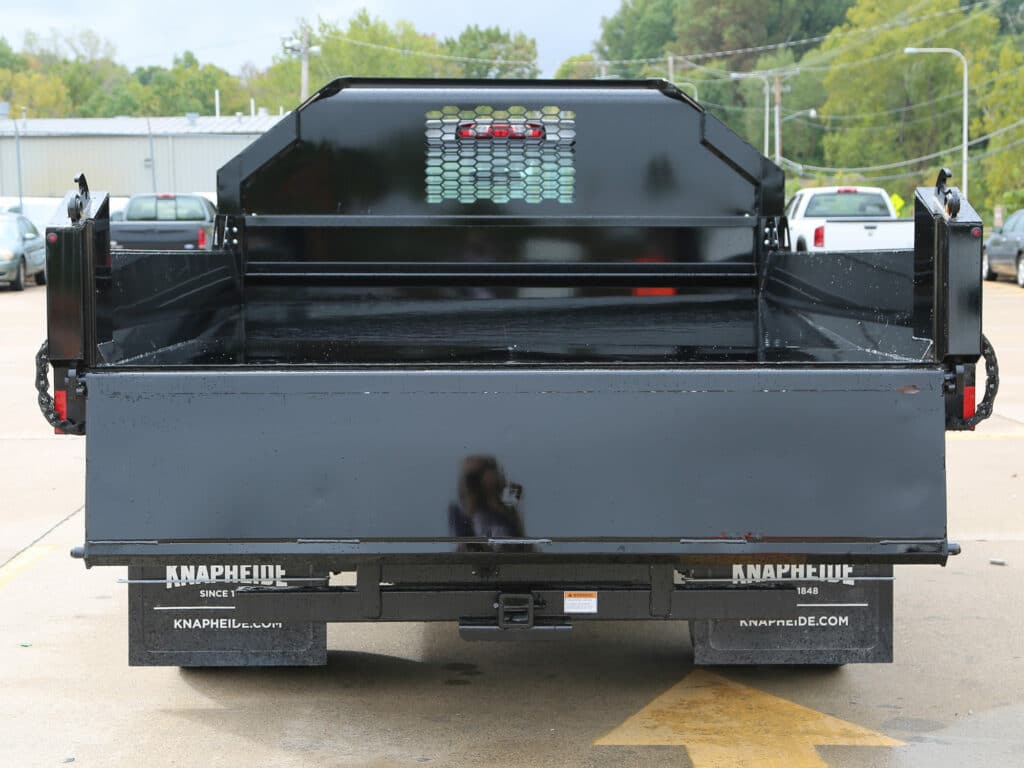

Double-Acting Tailgate
Versatile, double-acting tailgate in order to accommodate both spreader dumping applications and drop down pick-up style dumping applications. Constructed with 12 gauge HY50 outer panel and 10 gauge HY50 inner panel. Tailgate features a one-handed quick release lever for easy drop-down action.
Side Board Pockets
2x6 side board pockets on the sides at the front and rear allow for increased load capacity when utilizing cheater boards.

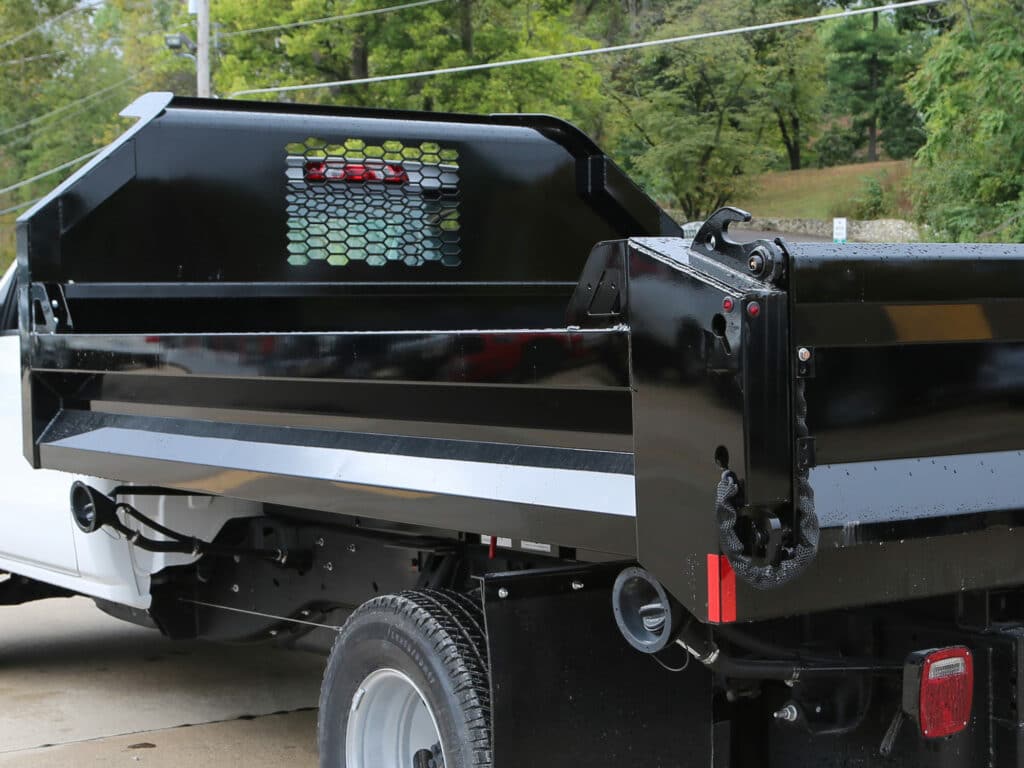

Tarp Hook
Rear corner posts equipped with a hook on each side to accept an optional tarp.
Toe Saver Bracket
Toe saver brackets located on both sides of the end rail for operator safety.
Side Construction
Sides are constructed of rugged 12 gauge high tensile steel for durability.
Sloped Rails
Sides and tailgate feature self-cleaning sloped top rails and lower rails for dirt shedding.
Undercoat
Under side of body receives additional corrosion protection with Knapheide's water-based undercoat.
Body Options
Add-ons
Specifications
Standard Models
Model Chassis CA Nominal Length Side Height Net Weight Bulkhead Height Capacity (yards) Inside Dimension - Length Inside Dimension - Width Drop Side Dump Bodies KDBDS912 60" 9' 12" 1455 18" 2.5 111" 86.9" KDBDS916 60" 9' 16" 1523 18" 3.29 111" 86.9" KDBDS1112 84" 11' 12" 1673 22" 3 135" 86.9" KDBDS1116 84" 11' 16" 1746 22" 4 135" 86.9" Fixed Side Dump Bodies KDBF912 60" 9' 12" 1472 18" 2.5 111" 86.9" KDBF916 60" 9' 16" 1553 18" 3.29 111" 86.9" KDBF1112 84" 11' 12" 1707 22" 3 135" 86.9" KDBF1116 84" 11' 16" 1798 22" 4 135" 86.9" Sprinter Drop Side Dump Bodies KDBDS1212B-SP 85.2" 12' 12" 1676 18" 3 147" 80.14"
Gallery
