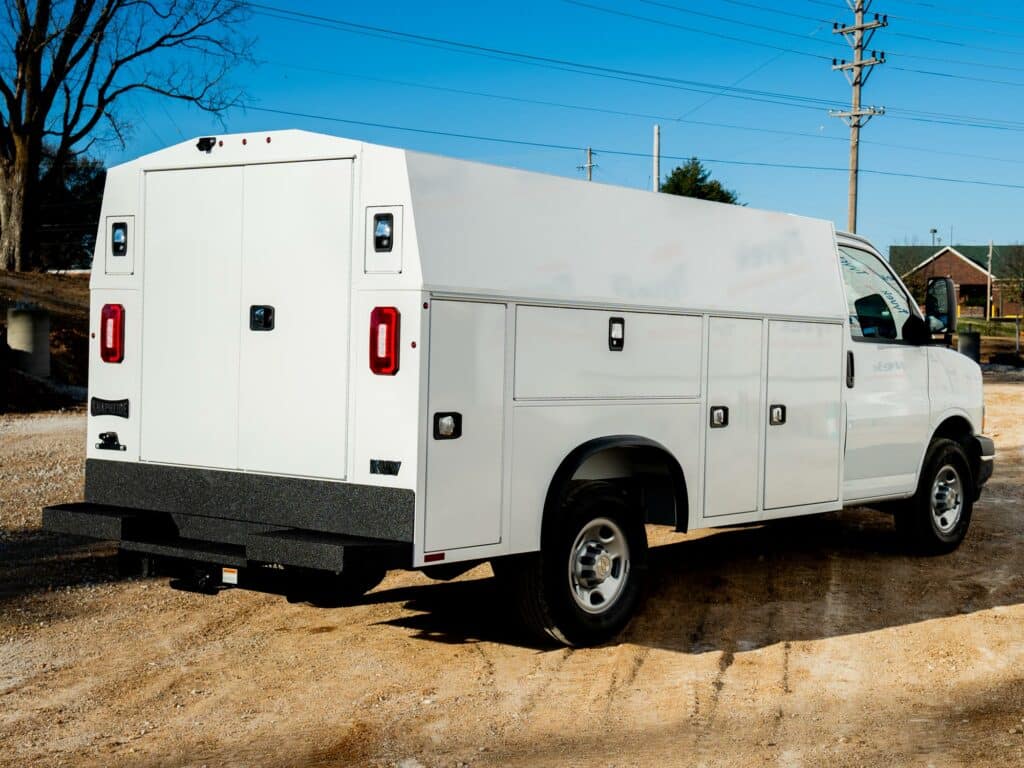

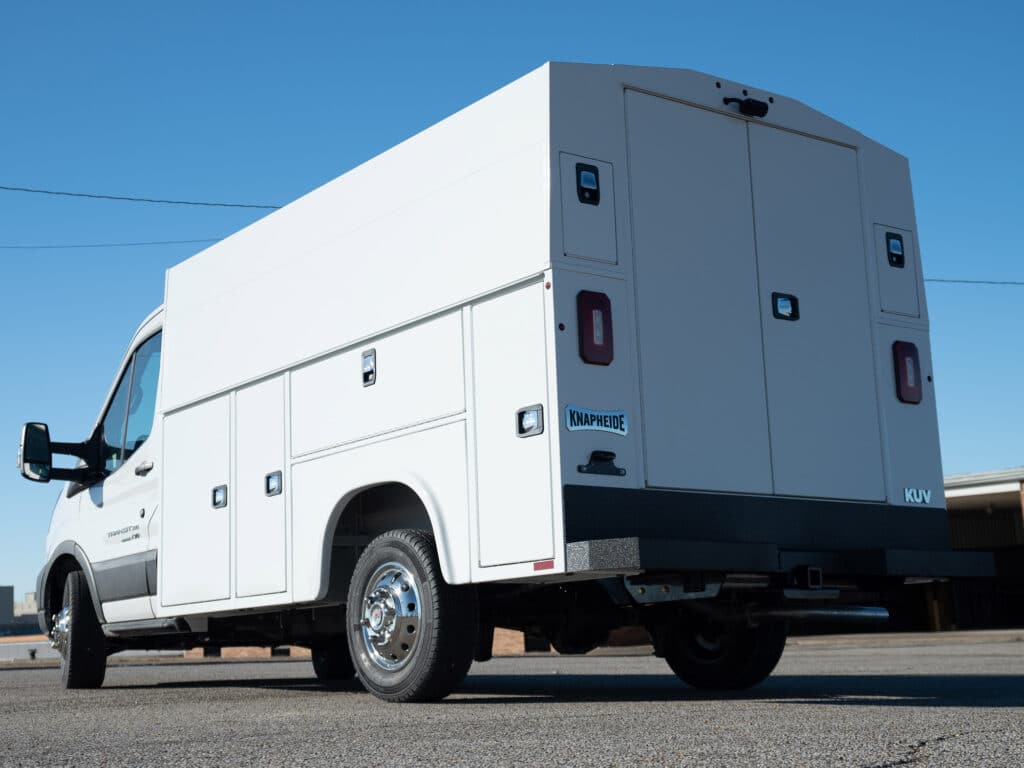

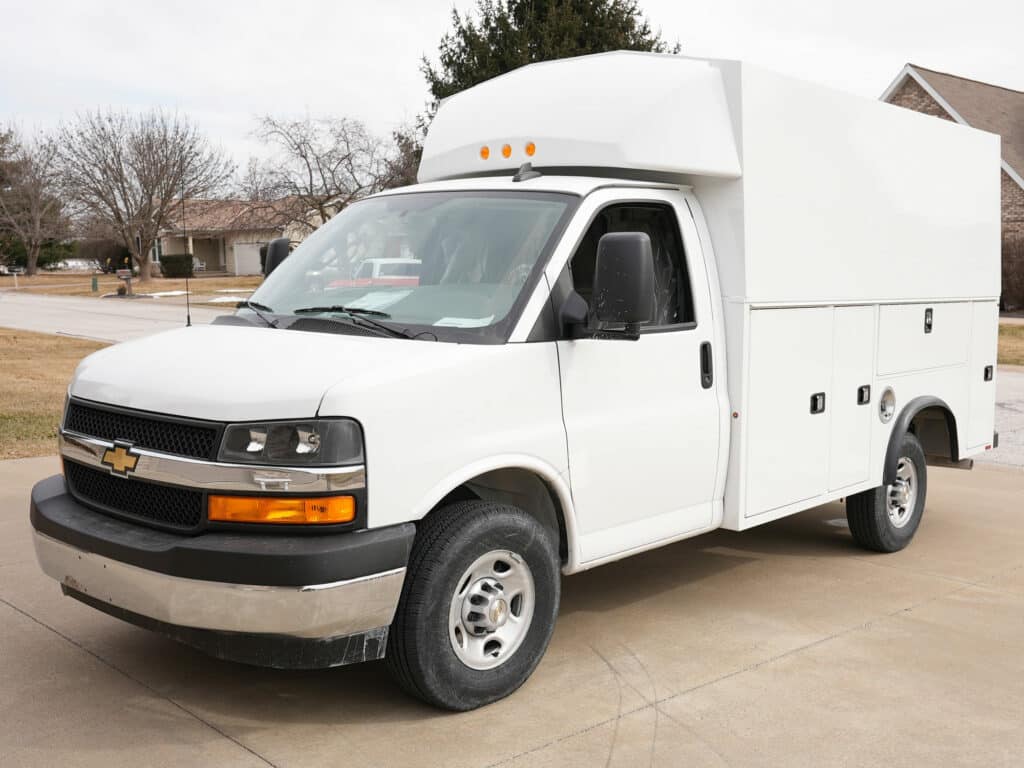

A Work Van Built for Payload and Fuel Savings
Our Knapheide KUV utility van is also available in rugged and lightweight aluminum, bringing with it additional advantages over its steel counterpart. Aluminum is a significantly lighter weight material, guaranteeing not only improved mileage but increased payload capability. That means you can save money at the gas pump and haul more equipment and materials than ever before. Because aluminum naturally resists rust and corrosion, you can expect the body to maintain its luster no matter the climate in which you work or the rigors of the jobsite that it experiences.
- 10 Year Limited Warranty guaranteeing no body rust-through, intact shelving, and fully operable door hinges, latches, and locks when used as directed.
- 6061 T6 and 5052 aluminum construction for greater payload capability and corrosion resistance.
- Cargo protecting enclosed bed design with externally accessible storage compartments.
- Models available in multiple heights and lengths.
- Designed for Class 2 and above van cab or cutaway chassis.
Interested?
Aluminum KUV Van
Features
LED Tail Lights
These surface mounted rectangular tail lights feature bright LED illumination, stop/turn/backup signaling, and built-in reflectivity with an option available upon request for strobing functionality with 8 selectable pattern choices. Guards inside the rear compartments protect interior wiring and other related components. The tail light’s housing, orientation and placement on the body may vary.
Automotive Latches
Our 6-year warranty backed automotive quality, paddle activated rotary latches make opening and closing compartment doors easy. Interior latching mechanisms include covers to prevent potential damage caused by shifting cargo inside the compartments. Locking can be facilitated via the included key entry feature and/or a power lock option available upon request.
Door Design
All compartment doors utilize pry-proof continuous hinges, weather protecting neoprene door seals, adjustable security ring striker for tighter closing, and spring or strut retainers to prevent involuntary door swing. Steel models are constructed of double-shell 20-guage, two-sided A-40 galvanneal steel while aluminum models are made from 6061 T6 and 5052 military grade aluminum.

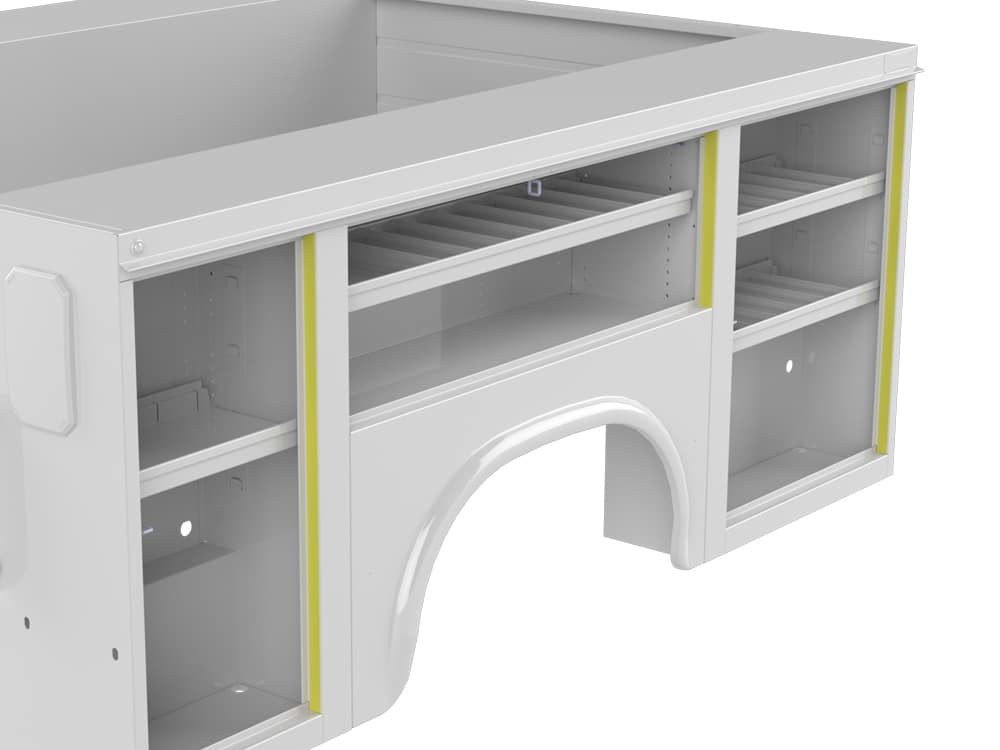

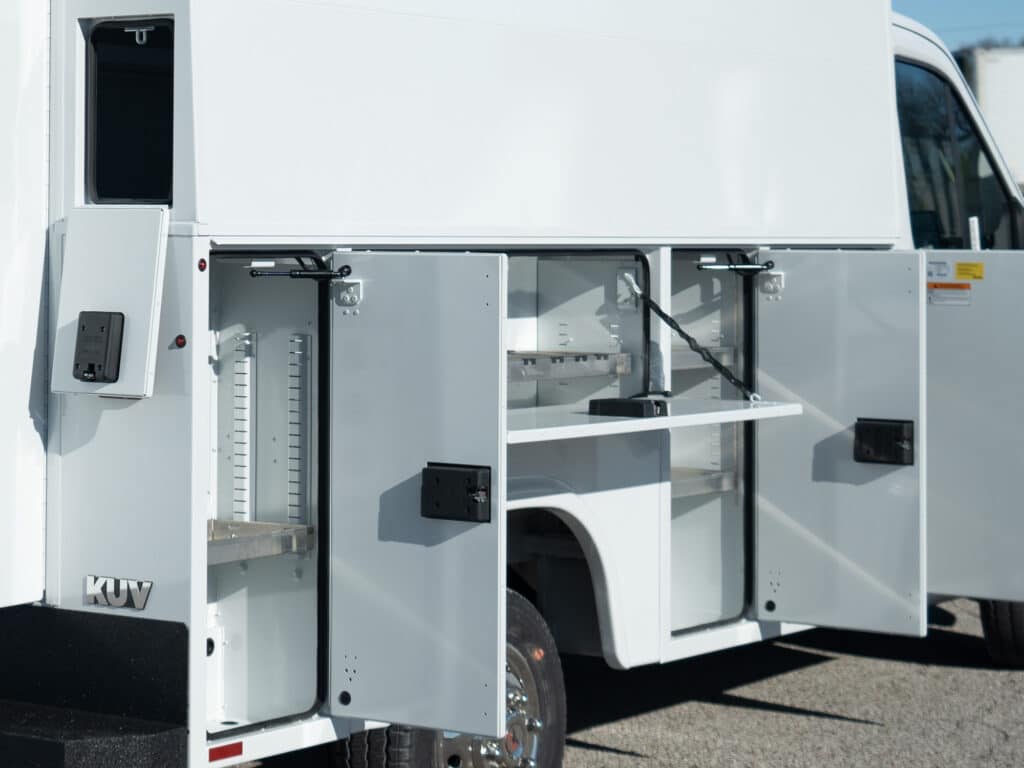

External Compartments
The size of compartments is influenced by the cab-to-axle length of the vehicle chassis or cutaway and the body height you plan to choose. Consult our specifications table for further guidance. Front vertical compartments have two shelves while full height rear vertical and curb side horizontal compartments have one shelf. Each adjustable shelf is rated to hold 250-lbs. with removable dividers every 4-inches.
Fender Skirts
Fender skirts are made from TPO or thermoplastic olefin, a common material in automotive bodies praised for its lightweight nature, impact resistance, and durability when exposed to weather or harsh substances.
Master Locking System
Locks all compartments on one side with a single device/move. Operates independent of your key locks for added security. Available only on Ford E-Series and GM G-Series compatible models.
Work Surface Horizontal Compartment
Horizontal compartment drops down to 90 degrees and can serve as a flat panel work surface on the jobsite.
Conduit Chutes
Two lockable conduit chutes with automotive style latches to transport copper pipes, PVC, conduit, and longer items.

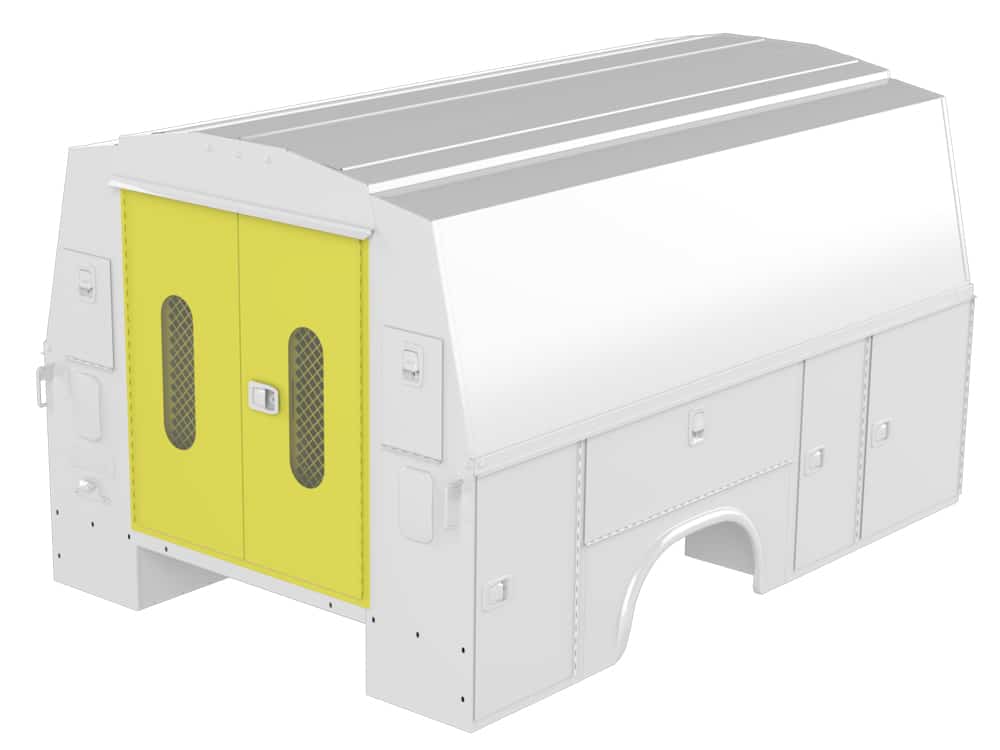

Rear Cargo Doors
Double panel rear cargo doors lock and seal into the body frame. Doors are constructed of corrosion resistant aluminum and employ slam latches.
Flat Panel Surface
Flat panel surface ideal for applying company logos, graphics, and contact information to create a rolling billboard.

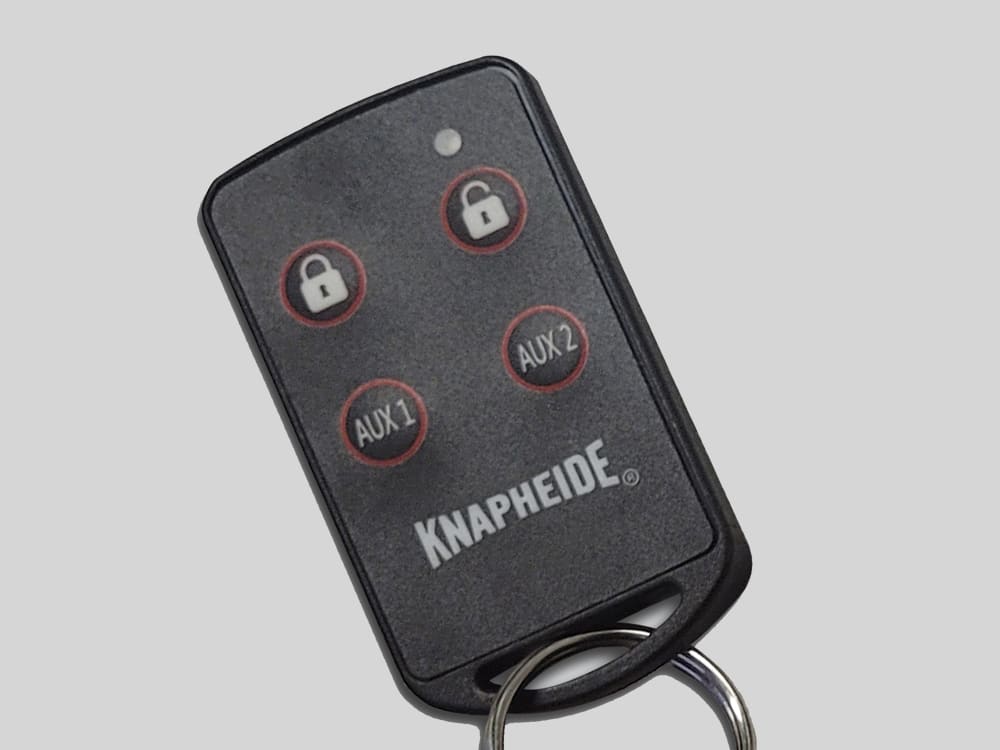

Power Locks-Master Locking System
Power Locks with key fob to lock and unlock compartment and rear cargo doors (Power Locks are standard on KUV models for Ford Transit and Ram ProMaster cutaway chassis, Master Locking System standard on KUV models for Ford E-Series and GM Express/Savana cutaway chassis).

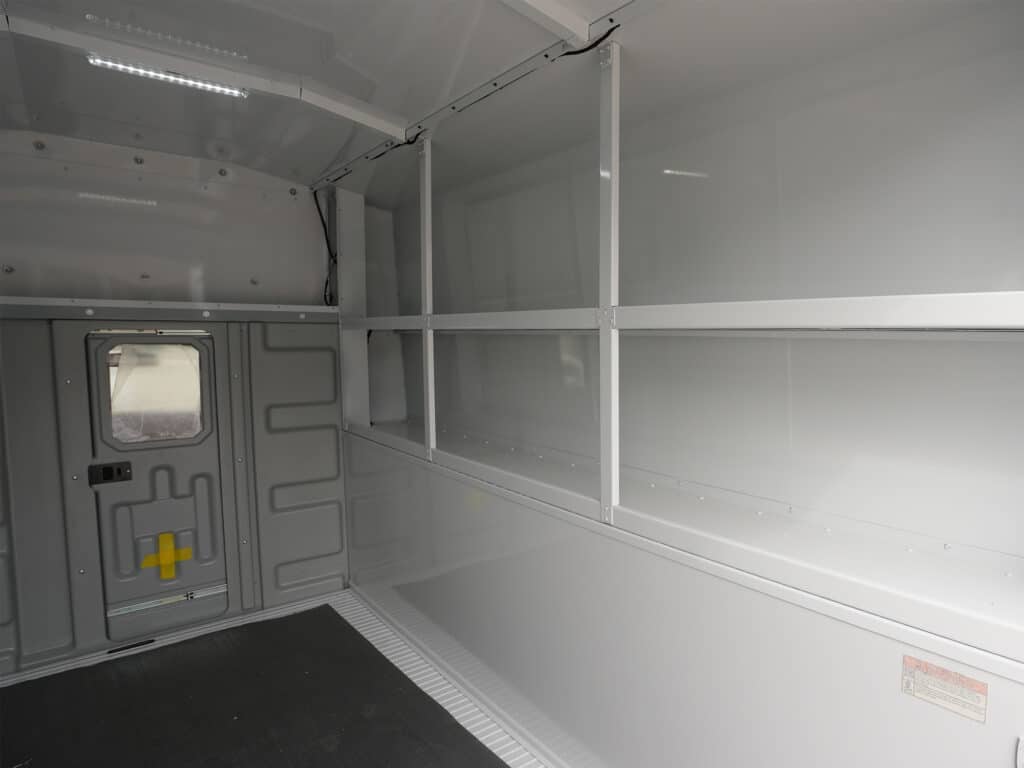

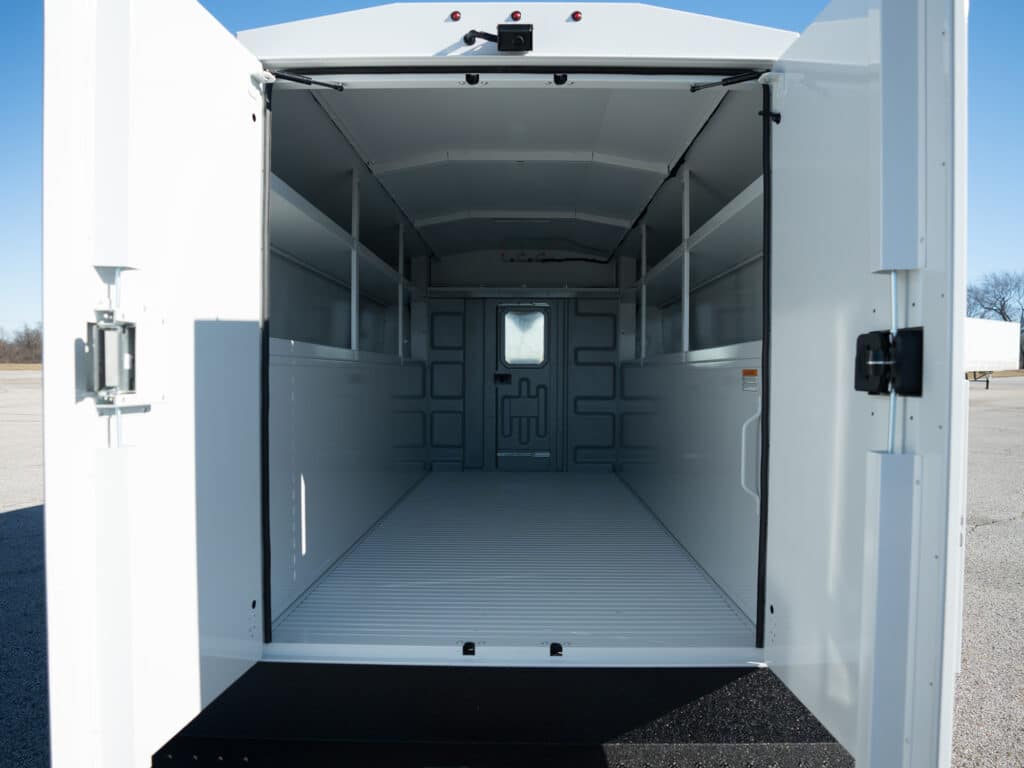

Cargo Area with Cab Access Door
Spacious cargo area for transporting oversized inventory, tools, and equipment. Sliding cab access door with window can be locked from the cab and secured in either an open or closed position.
Interior LED Light
Single interior LED light in cargo area for improved visibility in low light conditions. Light switch is located inside the rear cargo doors.
Grab Handle
Interior cargo area grab handle located directly inside the rear cargo doors on the curb side for easy and safe access.
ABS Partition
Refined ABS partition is equipped with a sliding cab access door and window. The door's slam latch can be locked from the cab and secured in either an open or closed position.
Wind Deflector
Aerodynamic wind deflector mounted on body above cab. Standard on high roof models only.
Body Options

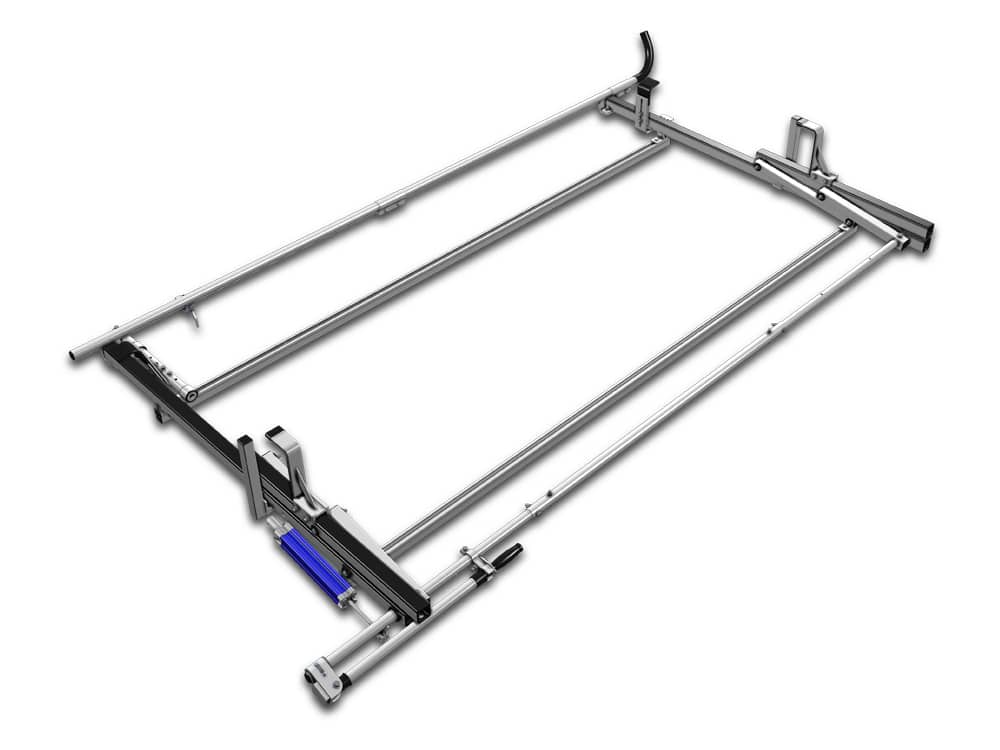

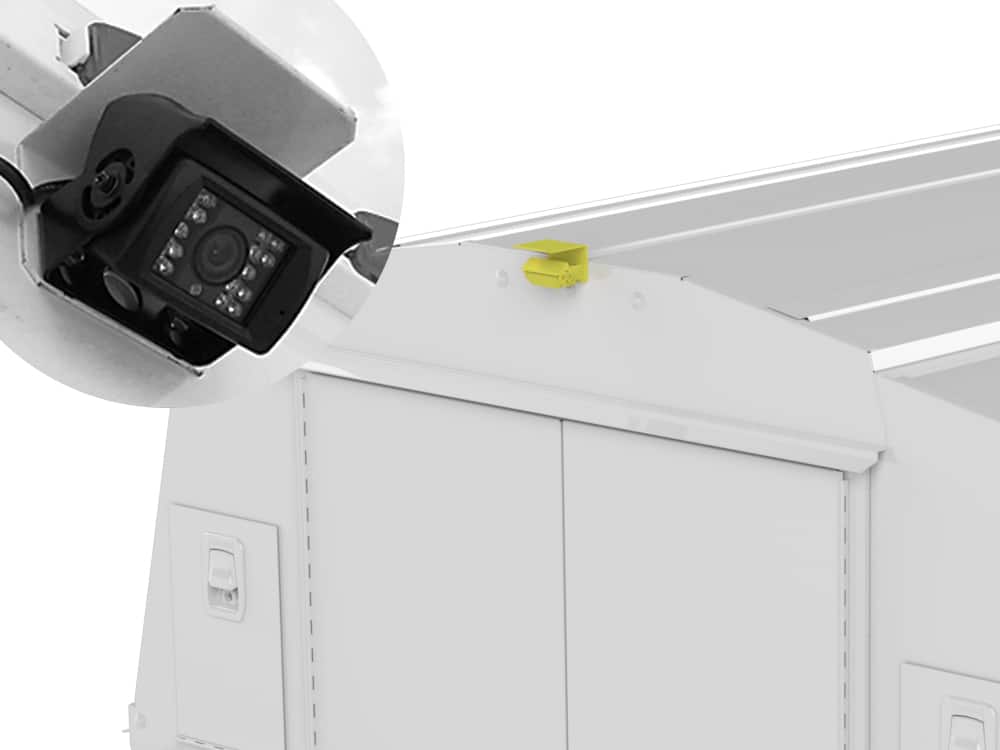

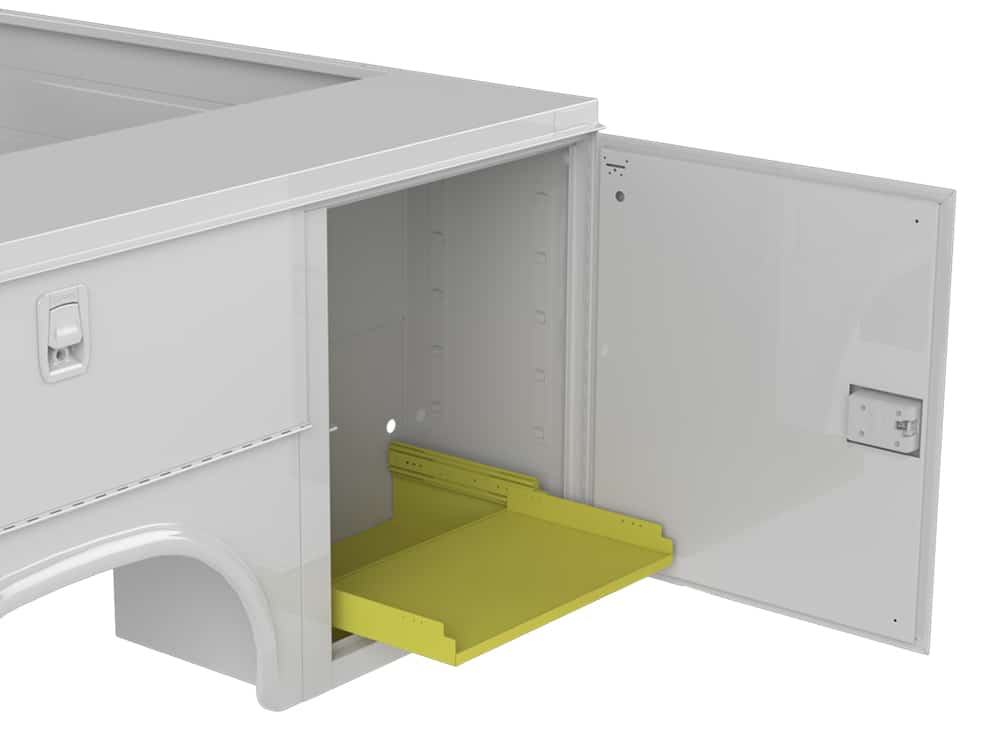

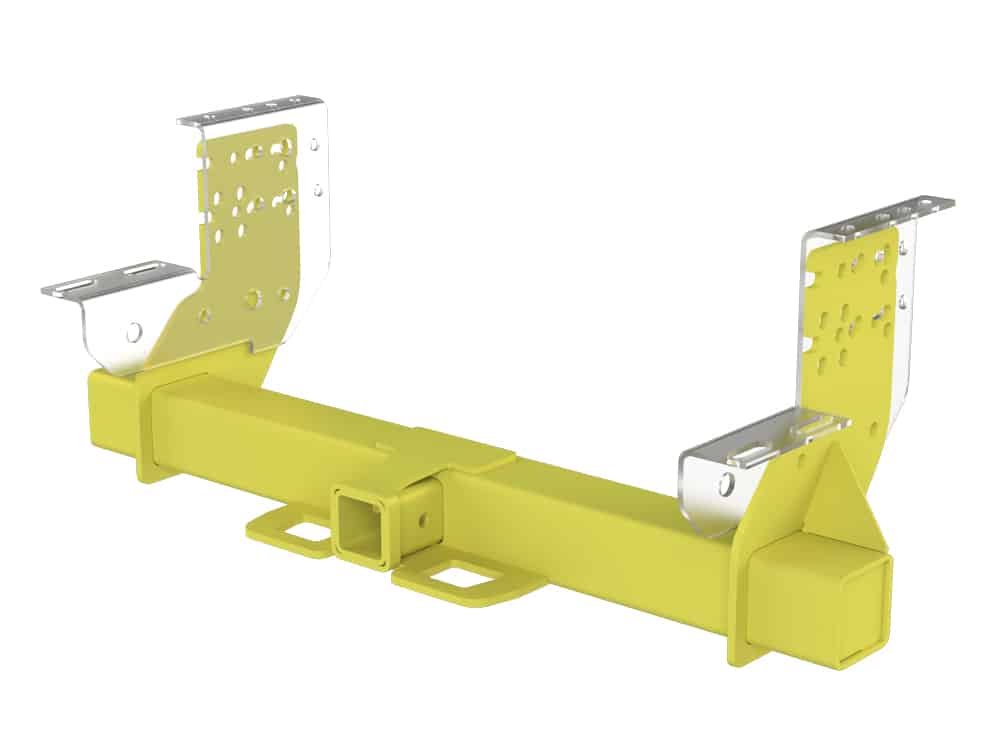

Add-ons
Specifications
Standard Models
MODEL CHASSIS CA APPLICABLE CHASSIS BODY LENGTH (NOMINAL) BODY HEIGHT BODY WIDTH COMPARTMENT DEPTH CLEAR DOOR WIDTH CLEAR DOOR HEIGHT INTERIOR CLEAR HEIGHT NET WEIGHT (LBS) Ford E-Series and GM G-Series Single Rear Wheel AKUV129SU 80" FORD E-350 (138"WB) GM G-VAN (139"WB) 129.25" 68" 83" 14.5" 50.1" 48.2" 53.1" 1160 AKUV129SL 80" FORD E-350 (138"WB) GM G-VAN (139"WB) 129.25" 78" 83" 14.5" 50.1" 57.5" 63.2" 1266 AKUV129SH 80" FORD E-350 (138"WB) GM G-VAN (139"WB) 129.25" 90" 83" 14.5" 50.1" 69.5" 75.2" 1327 Ford E-Series and GM G-Series Dual Rear Wheel AKUV129D20L 80" FORD E-350 (138"WB) GM G-VAN (139"WB) 129.25" 78" 94" 20" 50.1" 57.5" 63.2" 1324 AKUV129D20H 80" FORD E-350 (138"WB) GM G-VAN (139"WB) 129.25" 90" 94" 20" 50.1" 69.5" 75.2" 1383 Ford Transit Single Rear Wheel Cutaway Chassis AKUV129SU-FT 82.5" FORD TRANSIT SRW CUT-AWAY W/138"WB 129.25" 74" 83" 14.5" 50.1" 54.1" 59.2" 1233 AKUV129SL-FT 82.5" FORD TRANSIT SRW CUT-AWAY W/138"WB 129.25" 78" 83" 14.5" 50.1" 57.5" 63.2" 1253 AKUV129SH-FT 82.5" FORD TRANSIT SRW CUT-AWAY W/138"WB 129.25" 90" 83" 14.5" 50.1" 69.5" 75.2" 1315 Ford Transit Dual Rear Wheel Cutaway Chassis AKUV129DU-FT 82.5" FORD TRANSIT DRW CUT-AWAY W/138"WB 129.25" 74" 83" 14.5" 50.1" 54.7" 59.2" 1233 AKUV129DL-FT 82.5" FORD TRANSIT DRW CUT-AWAY W/138"WB 129.25" 78" 83" 14.5" 50.1" 58.1" 63.2" 1253 AKUV129DH-FT 82.5" FORD TRANSIT DRW CUT-AWAY W/138"WB 129.25" 90" 83" 14.5" 50.1" 70.2" 75.3" 1314
