Our Most Popular and Versatile Flatbed
Need a versatile flatbed truck body that can haul just about anything? Knapheide’s Value-Master X Platform Body features solid steel construction and is available in many different lengths and widths to fit a variety of chassis applications. Choose wood, steel or treadplate flooring and pick from numerous side accessories including stake sides, solid sides or refuse sides to customize for your hauling job. Pair this flatbed up with a hoist to add dumping functionality. Regardless of your needs, the Value-Master X Platform Body from Knapheide has you covered.
- 3 Year Limited Warranty guaranteeing no body rust-through and defect-free material and workmanship when used as directed.
- Constructed from 14-gauge, A-40 galvanneal steel for unmatched strength and durability.
- Multiple flooring materials, side options, bulkhead styles, storage and cargo restraining solutions offered.
- Models are available in 79 to 101-inch widths and 7 to 26-foot lengths.

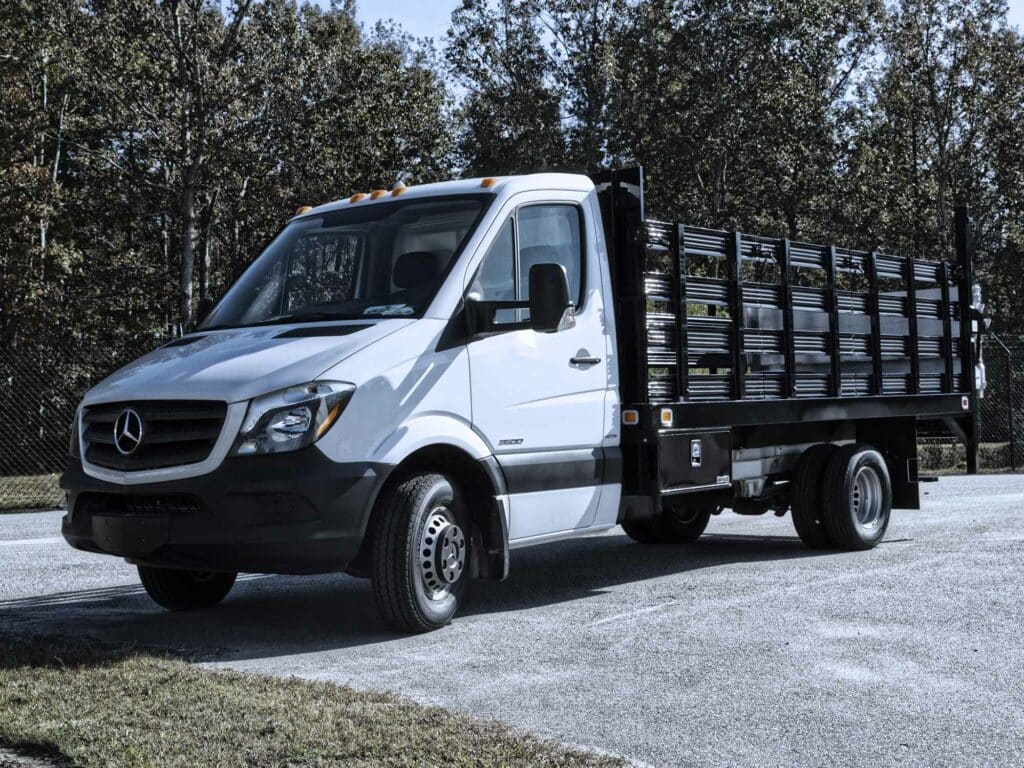

- Designed for Class 2 and above single and dual rear wheel cab chassis.
Interested?

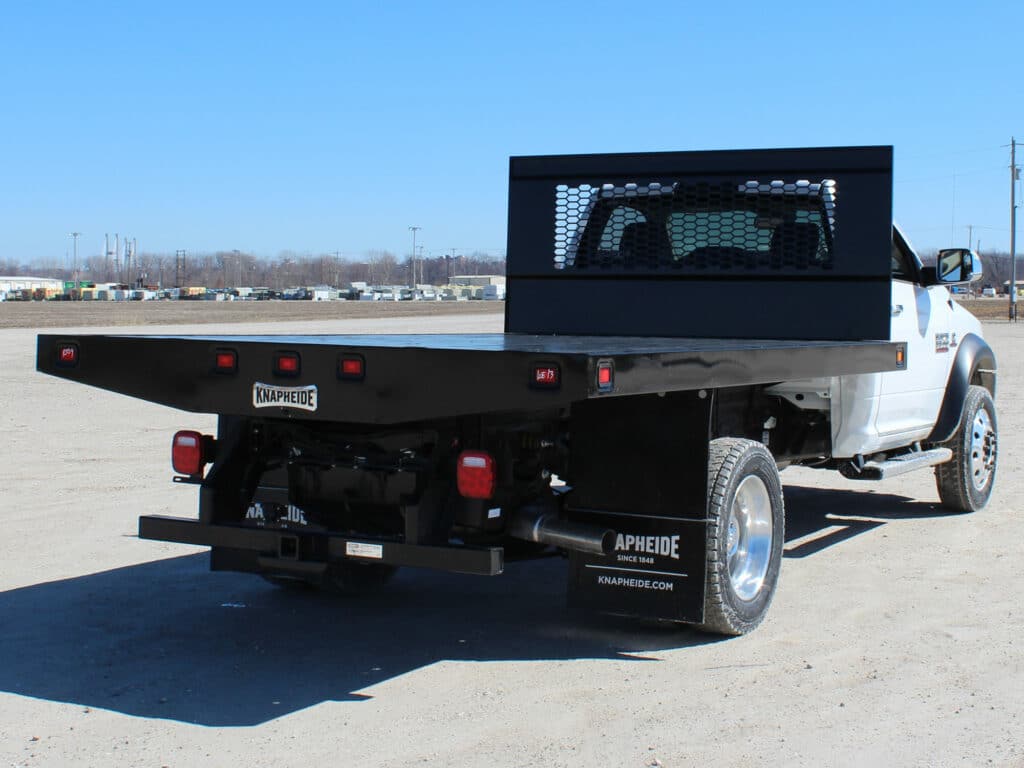

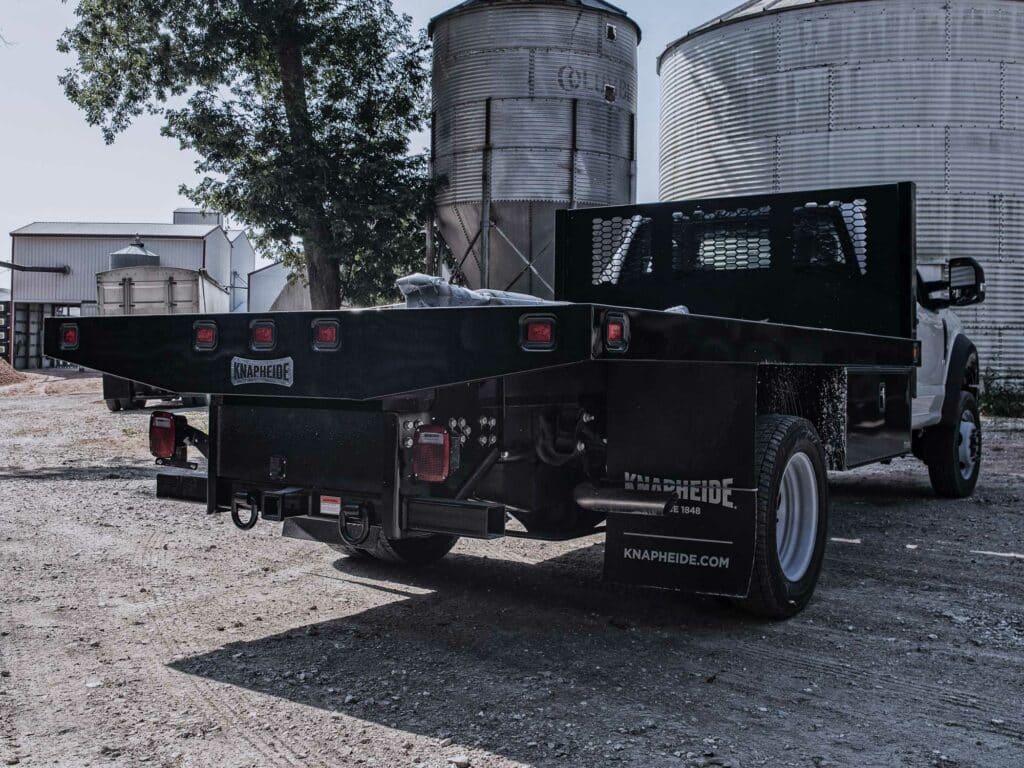

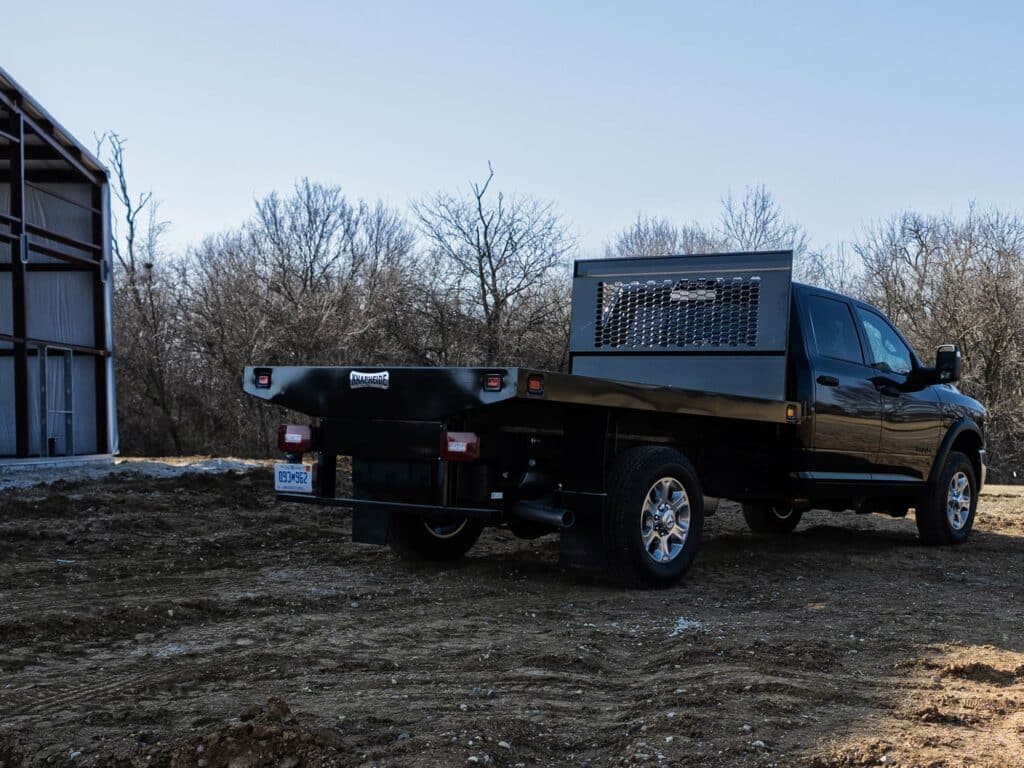

Value-Master X Platform Body
Features
E-Coat Immersion
Knapheide Bodies are fully immersed in Knapheide's 12-step, electrodeposition prime paint system for superior corrosion resistance.
Flooring

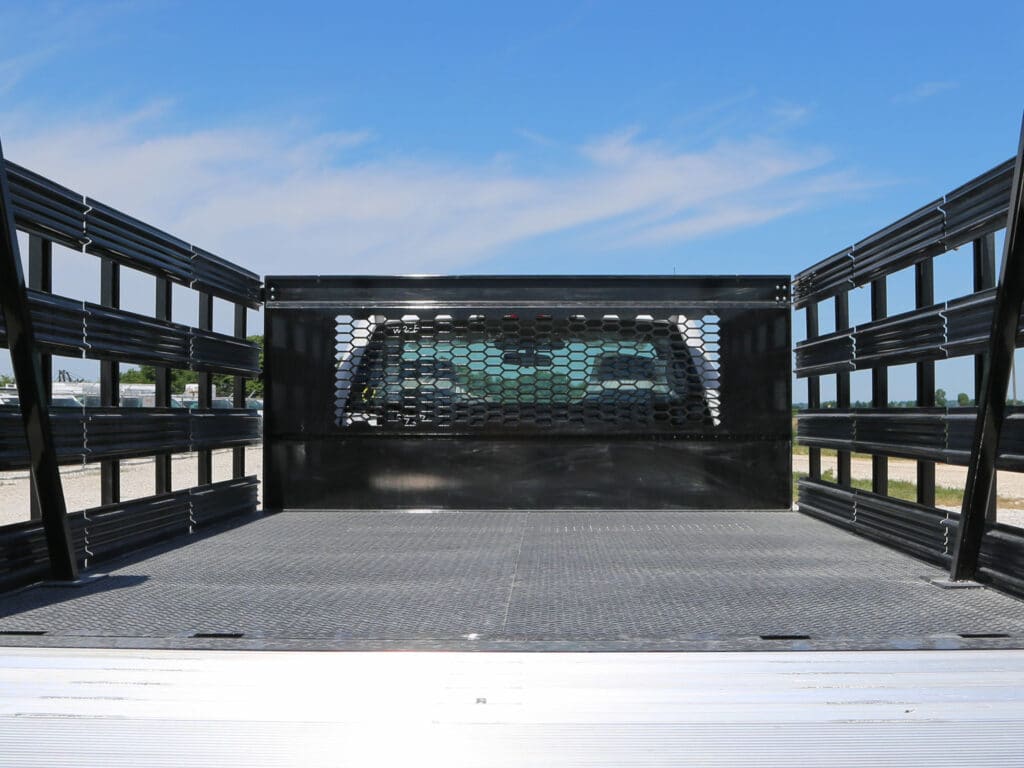

Choose from either 1/8" treadplate, 10 gauge smooth steel, or 2" pine flooring (shown), whichever best fits your application.
Long Sill Construction
Long sills with gusseted cross members | 5” on 12’ and shorter platforms
| 7” on 13’ and longer platforms
| 6” for SRW (80 Series) platforms
Cross Member Structure
Formed, 11-gauge high strength (50,000 psi) cross members are spaced on 18” centers for 12’ and shorter platforms and 12” centers on 13’ and longer platforms.
Side and End Rails
Side and end rails constructed of formed 12-gauge, high-strength steel (50,000 psi)
Stake Pockets

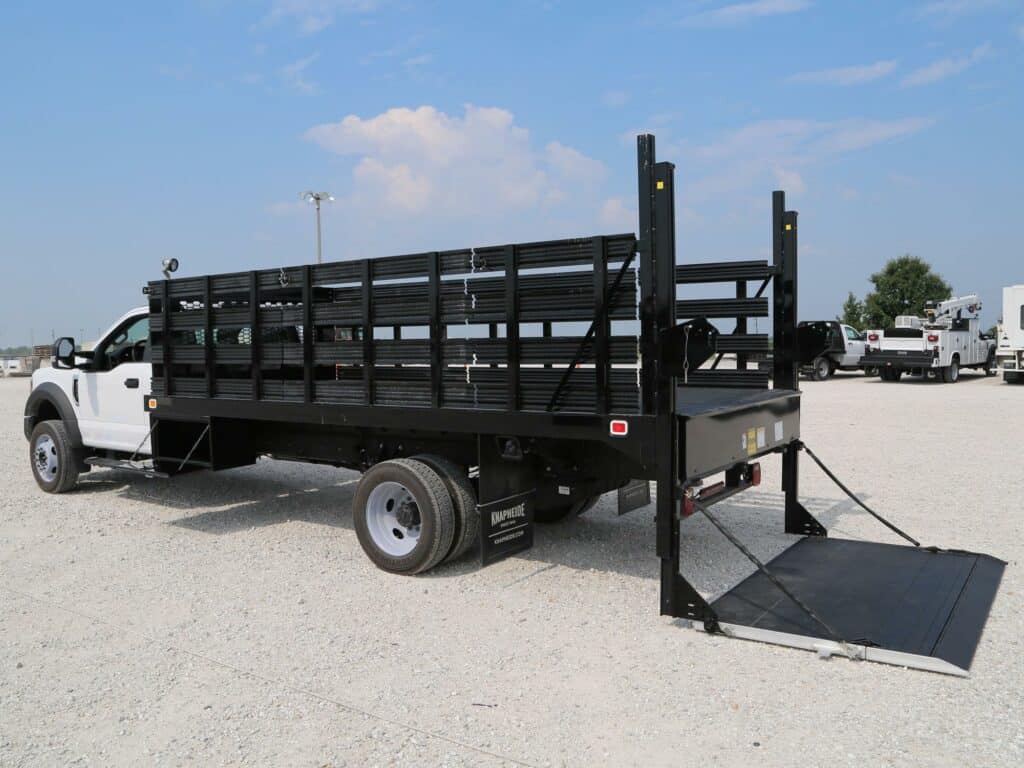

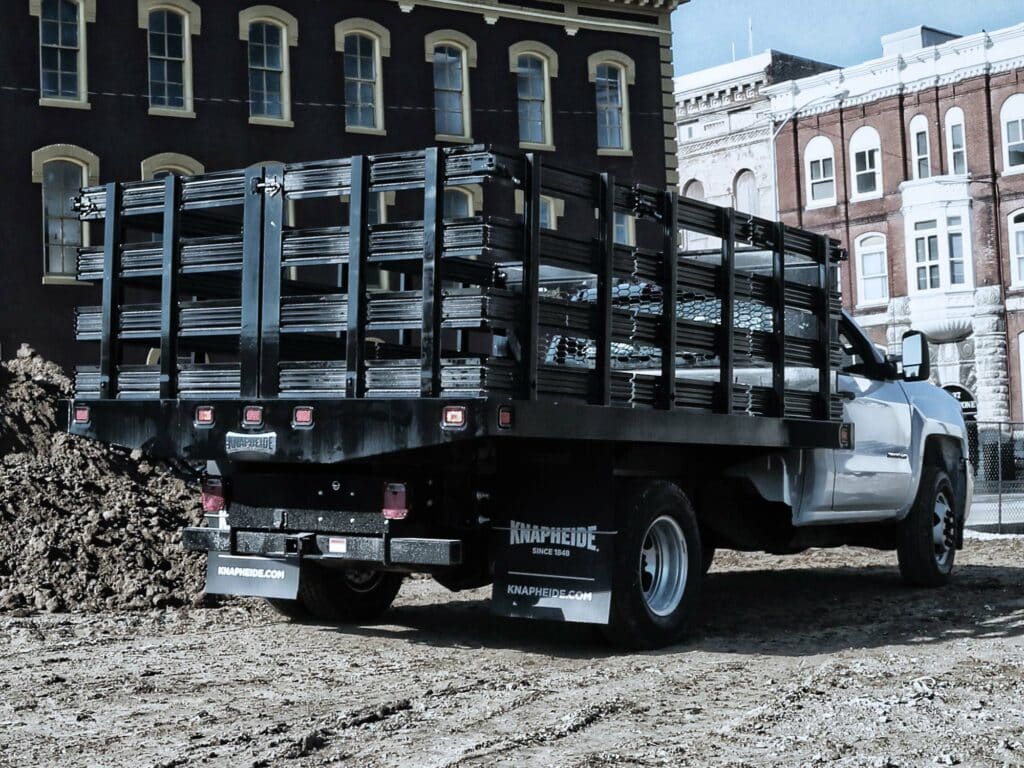

Reinforced internal stake pockets are sized to accept 2x4 lumber as well as a wide array of Knapheide side options
Recessed LED Lighting
Recessed LED RID lights located on the front and back corners of the side rails and rear tail skirt for increased visibility.
Undercoat
Under side of body receives additional corrosion protection with Knapheide's water-based undercoat.
Finish Paint
Durable oven-cured finish coat paint on top of Knapheide's exclusive electrodeposition prime paint for a clean overall appearance.
Body Options
Add-ons
Specifications
Standard Models
Actual Length Actual Width Chassis CA Pine Wood Floor - Model Pine Wood Floor - Net Weight (lbs) Smooth Steel Floor - Model Smooth Steel Floor - Net Weight (lbs) Treadplate Floor - Model Treadplate Floor - Net Weight (lbs) Single Rear Wheel 7'-3" 79.75" 40" PVMX-738 422 PVMXS-738 546 PVMXT-738 543 7'-6" 79.75" 42" PVMX-768 413 PVMXS-768 561 PVMXT-768 559 8'-6" 79.75" 56" PVMX-868 489 PVMXS-868 632 PVMXT-868 629 8'-9" 79.75" 56" PVMX-898 569 PVMXS-898 645 PVMXT-898 643 9'-5" 79.75" 60" PVMX-958 564 PVMXS-958 721 PVMXT-958 718 Dual Rear Wheel 8'-6" 95.75" 56" PVMX-86 552 PVMXS-86 731 PVMXT-86 729 8'-9" 95.75" 56" PVMX-89 647 PVMXS-89 747 PVMXT-89 744 9'-5" 95.75" 60" PVMX-95 636 PVMXS-95 827 PVMXT-95 824 10'-5" 95.75" 72-84" PVMX-105 681 PVMXS-105 892 PVMXT-105 888 11'-5" 95.75" 84" PVMX-115 748 PVMXS-115 978 PVMXT-115 975 12'-5" 95.75" 84-102" PVMX-125 819 PVMXS-125 1069 PVMXT-125 1065 13'-5" 95.75" 108" PVMX-135 1058 PVMXS-135 1328 PVMXT-135 1245 14'-5" 95.75" 102-124" PVMX-145 1134 PVMXS-145 1424 PVMXT-145 1419 16'-5" 95.75" 108-138" PVMX-165 1285 PVMXS-165 1615 PVMXT-165 1609 18'-5" 95.75" 120-152" PVMX-185 1437 PVMXS-185 1806 PVMXT-185 1800 20'-5" 95.75" 136-168" PVMX-205 1588 PVMXS-205 1997 PVMXT-205 1990 22'-5" 95.75" 144-192" PVMX-225 1743 PVMXS-225 2188 PVMXT-225 2180 24'-5" 95.75" 158-196" PVMX-245 1894 PVMXS-245 2379 PVMXT-245 2370 26'-5" 95.75" 196-270" PVMX-265 2045 PVMXS-265 2569 PVMXT-265 2560 Wide Applications 14'-5" 101.8" 102-124" PVMXW-145 1180 PVMXWS-145 1490 PVMXWT-145 1485 16'-5" 101.8" 108-138" PVMXW-165 1337 PVMXWS-165 1690 PVMXWT-165 1684 18'-5" 101.8" 120-152" PVMXW-185 1494 PVMXWS-185 1889 PVMXWT-185 1882 20'-5" 101.8" 136-168" PVMXW-205 1651 PVMXWS-205 2089 PVMXWT-205 2081 22'-5" 101.8" 144-192" PVMXW-225 1812 PVMXWS-225 2288 PVMXWT-225 2280 24'-5" 101.8" 158-196" PVMXW-245 1969 PVMXWS-245 2488 PVMXWT-245 2479 26'-5" 101.8" 196-270" PVMXW-265 2126 PVMXWS-265 2687 PVMXWT-265 2677 Ford Transit Platforms 10'-5" 83.25" 82.5" PVMX-1058-FT 641 PVMXS-1058-FT 821 PVMXT-1058-FT 818 11'-5" 83.25" 82.5" PVMX-1158-FT 701 PVMXS-1158-FT 899 PVMXT-1158-FT 896 12'-5" 83.25" 100" PVMX-1258-FT 746 PVMXS-1258-FT 983 PVMXT-1258-FT 979 13'-5" 83.25" 100" PVMX-1358-FT 894 PVMXS-1358-FT 1127 PVMXT-1358-FT 1123 10'-5" 95.75" 82.5" PVMX-105-FT 681 PVMXS-105-FT 908 PVMXT-105-FT 904 11'-5" 95.75" 82.5" PVMX-115-FT 764 PVMXS-115-FT 994 PVMXT-115-FT 990 12'-5" 95.75" 100" PVMX-125-FT 811 PVMXS-125-FT 1087 PVMXT-125-FT 1082 13'-5" 95.75" 100" PVMX-135-FT 979 PVMXS-135-FT 1250 PVMXT-135-FT 1245 Sprinter Platforms 12'-5" 88.38" 85.2" PVMX-1239C-SP 863 PVMXS-1239C-SP 1120 PVMXT-1239C-SP 1116 14'-5" 88.38" 111.2 PVMX-1439C-SP 1072 PVMXS-1439C-SP 1376 PVMXT-1439C-SP 1372 ProMaster Platforms 11'-5" 95.75" 81" PVMX-115-RP 808 PVMXS-115-RP 1038 PVMXT-115-RP 1034 12'-5" 95.75" 81" PVMX-125-RP 905 PVMXS-125-RP 1131 PVMXT-125-RP 1126 13'-5" 95.75" 104" PVMX-135-RP 1021 PVMXS-135-RP 1292 PVMXT-135-RP 1287 14'-5" 95.75" 104" PVMX-145-RP 1094 PVMXS-145-RP 1384 PVMXT-145-RP 1379
