An Enclosed Work Truck For Hauling More
The Knapheide aluminum KUVcc enclosed service truck body boasts the same features as our standard aluminum service bodies with the added security and functionality of a covered roof. Available for both single and dual-rear-wheel chassis, with numerous lengths and roof heights, there’s an Aluminum KUVcc for your line of work or needs. Check out the many features and options and submit a quote request today so you can start building the ultimate truck body today. A versatile, lightweight, practical solution for a variety of vocations, Knapheide’s Aluminum KUVcc is an ideal choice for tradespeople everywhere.
- 10 Year Limited Warranty guaranteeing no body rust-through, intact shelving, and fully operable door hinges, latches, and locks when used as directed.
- 6061 T6 and 5052 aluminum construction for greater payload capability and corrosion resistance.
- Cargo protecting enclosed bed design with externally accessible storage compartments.
- Models available in multiple heights and lengths.
- Designed for Class 2 and above truck cab chassis.
Interested?
Aluminum KUVcc Enclosed Service Body
Features
LED Tail Lights
These surface mounted rectangular tail lights feature bright LED illumination, stop/turn/backup signaling, and built-in reflectivity with an option available upon request for strobing functionality with 8 selectable pattern choices. Guards inside the rear compartments protect interior wiring and other related components. The tail light’s housing, orientation and placement on the body may vary.
Automotive Latches
Our 6-year warranty backed automotive quality, paddle activated rotary latches make opening and closing compartment doors easy. Interior latching mechanisms include covers to prevent potential damage caused by shifting cargo inside the compartments. Locking can be facilitated via the included key entry feature and/or a power lock option available upon request.
Door Design
All compartment doors utilize pry-proof continuous hinges, weather protecting neoprene door seals, adjustable security ring striker for tighter closing, and spring or strut retainers to prevent involuntary door swing. Steel models are constructed of double-shell 20-guage, two-sided A-40 galvanneal steel while aluminum models are made from 6061 T6 and 5052 military grade aluminum.

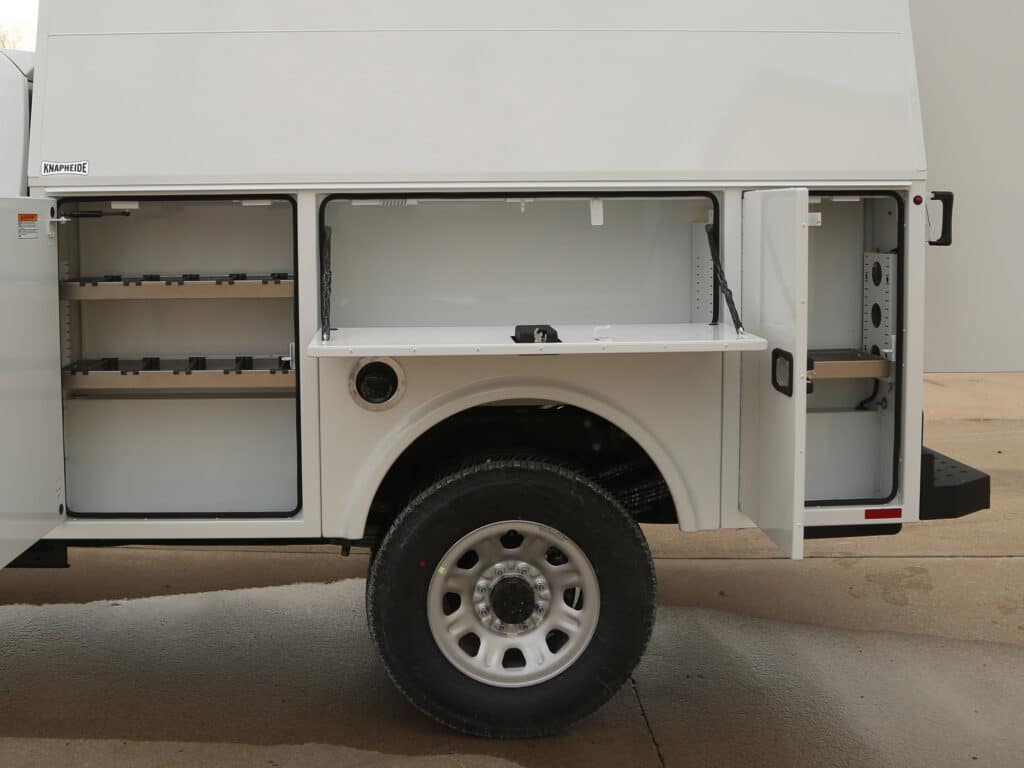

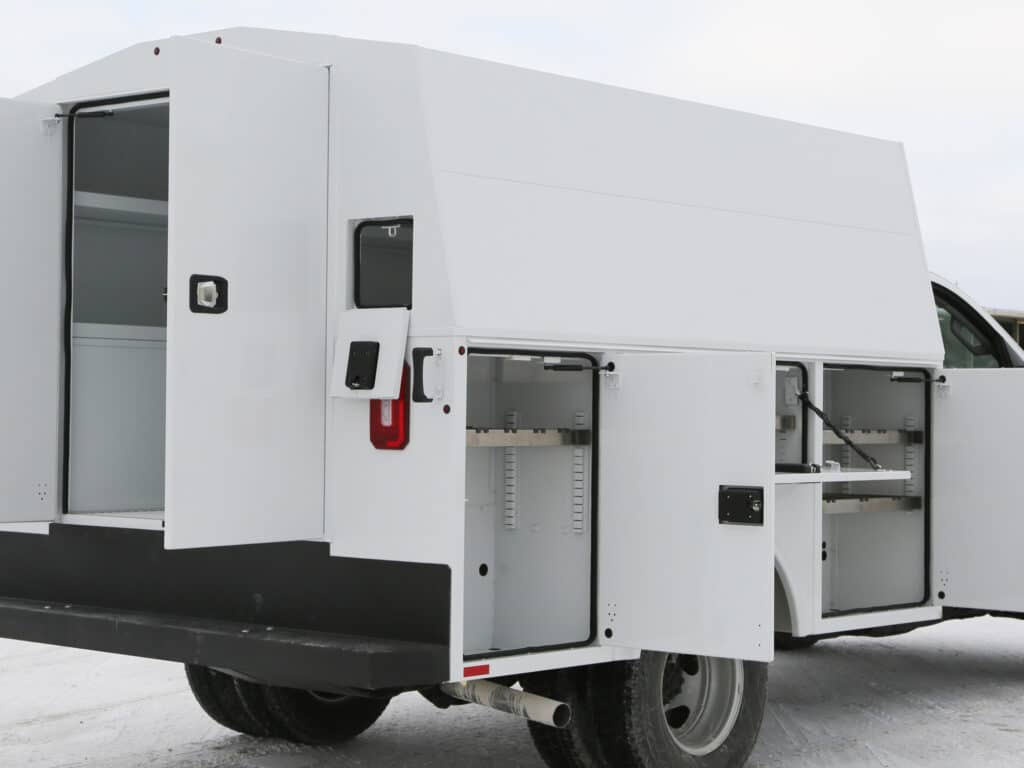

External Compartments
The size of compartments is influenced by the cab-to-axle length of the vehicle chassis or cutaway and the body height you plan to choose. Consult our specifications table for further guidance. Front vertical compartments have two shelves while full height rear vertical and curb side horizontal compartments have one shelf. Each adjustable shelf is rated to hold 250-lbs. with removable dividers every 4-inches.
Fender Skirts
Fender skirts are made from TPO or thermoplastic olefin, a common material in automotive bodies praised for its lightweight nature, impact resistance, and durability when exposed to weather or harsh substances.
Master Locking System
Master Locking System locks down all of the side compartments on one side by utilizing a padlock, provides an additional layer of security.
Body Options
Add-ons
Specifications
Standard Models
Model Chassis CA Body Length (Nominal) Body Height Body Width Compartment Depth Clear Door Width Clear Door Height Interior Clear Height Net Weight (lbs) 56-84" Dual Rear Wheel AKC98M2094 56" 99.25" 78" 94" 20" 50" 54" 60" 938 AKC98H2094 56" 99.25" 90" 94" 20" 50" 66" 72" 982 AKC110L2094 60" 109.25" 68" 94" 20" 50" 44" 50" 969 AKC110M2094 60" 109.25" 78" 94" 20" 50" 54" 60" 1006 AKC110H2094 60" 109.25" 90" 94" 20" 50" 66" 72" 1050 AKC132M2094 84" 133.25" 78" 94" 20" 50" 54" 60" 1180 AKC132H2094 84" 133.25" 90" 94" 20" 50" 66" 72" 1227 56-60" Single Rear Wheel AKC98U1478 56" 99.25" 62" 78" 14.5" 45" 38" 44" 739 AKC98L1478 56" 99.25" 68" 78" 14.5" 45" 44" 50" 789 AKC98M1478 56" 99.25" 78" 78" 14.5" 45" 54" 60" 821 AKC110L1478 60" 109.25" 68" 78" 14.5" 45" 44" 50" 846 AKC110M1478 60" 109.25" 78" 78" 14.5" 45" 54" 60" 880
